DDR5
Non-ECC Unbuffered Memory
DDR5 Wide Temp. SODIMM
Features
- Speeds up to 5600MT/s with capacities up to 48GB
- Operating Environment: -40°C ~ 95°C (Tc)
- DDR5 original-grade IC equipped with on-die ECC functionality
- DDR5 on-module PMIC and dual sub-channel structure
- 30μ” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
- Complies with RoHS and CE / FCC certifications
As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.
PERFECTLY ADAPTS TO CHANGING CONDITIONS
By developing specialized testing methods, Innodisk DDR5 Wide Temperature SODIMM modules are designed to operate within industrial-grade temperature ranges of -40°C to 95°C, making them ideal for extreme environments and demanding applications.
HIGHER DATA RELIABILITY, LOWER POWER CONSUMPTION

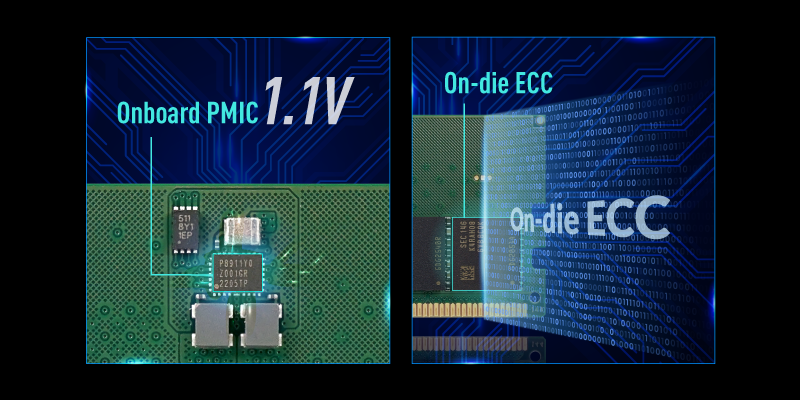

The DDR5 Wide Temperature SODIMM modules are equipped with a on-module power management IC (PMIC) to maintain a stable power supply at 1.1V, ensuring consistent and efficient operation. Additionally, the IC features an on-die ECC function, providing an extra layer of protection against data loss, reducing the risk of errors, and enhancing overall reliability.
SAFEGUARDING MODULES WITH ANTI-SULFURATION PROTECTIVE LAYER
Sulfur is pervasive in many industries. When silver alloys in the DRAM chip encounters sulfur gasses a corrosion reaction occurs. This sulfuration causes lower conductivity and can quickly lead to product failure. To avoid this, Innodisk adds a protective layer above the vulnerable parts to safeguard the silver alloys.
Anti-Sulfuration >
PROVEN RELIABILITY THROUGH 3rd PARTY TESTING
Innodisk’s products are rigorously tested to ensure unmatched reliability and performance in demanding environments. They undergo extensive validation under extreme conditions, adhering to industry standards.
- Thermal Shock: -40°C ~ 110°C, 500 Cycles
- Anti-sulfuration Test: 480 Hours, ASTM B809-95
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

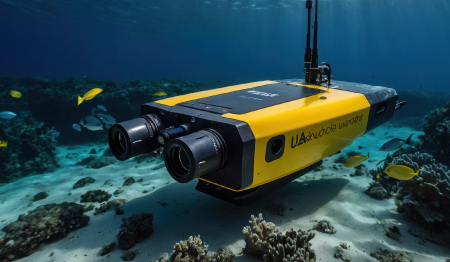

EXPLORING THE DEPTHS: THE AUV SYSTEM
Innodisk provides high-standard DDR5 4800 16GB Wide Temperature SODIMM modules for our client's autonomous underwater vehicle (AUV) systems, enabling undersea research. The memory modules offer extreme temperature resistance and comprehensive technical support.
仕様
| Model Name | DDR5 Wide Temperature SODIMM |
|---|---|
| DDR Generation | DDR5 Memory |
| DIMM Type | SODIMM |
| Speed | 4800 MT/s, 5600 MT/s |
| Density | 8GB, 16GB, 24GB, 32GB, 48GB |
| Function | Non-ECC Unbuffered Memory |
| Pin Number | 262pin |
| Bus Width | x64 |
| Voltage | 1.1V |
| PCB Height | 1.18 Inches |
| Operating Temperature | -40°C ~ 95°C (Tc) |
| 30μ” Gold Finger | Y |
| Anti-Sulfuration | Y |
注文情報
P/N | IC Config. | Rank | Temp. | Description |
M5S0-8GSYZ5ZQ | 1G x 16 | 1R x 16 | -40°C ~ 95°C (Tc) | DDR5 5600 8GB Wide Temperature SODIMM |
M5S0-8GMYZ5ZQ | 1G x 16 | 1R x 16 | -40°C ~ 95°C (Tc) | DDR5 5600 8GB Wide Temperature SODIMM |
M5S0-AGS2N5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SODIMM |
M5S0-AGM2N5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SODIMM |
M5S0-FGMZN5ZQ | 3G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 24GB Wide Temperature SODIMM |
M5S0-BGS2O5ZQ | 2G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 32GB Wide Temperature SODIMM |
M5S0-BGM2O5ZQ | 2G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 32GB Wide Temperature SODIMM |
M5S0-GGMZO5ZQ | 3G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 48GB Wide Temperature SODIMM |
*Please contact Innodisk for products with other speeds.
