SD Card & MicroSD Card
8GB ~ 64GB

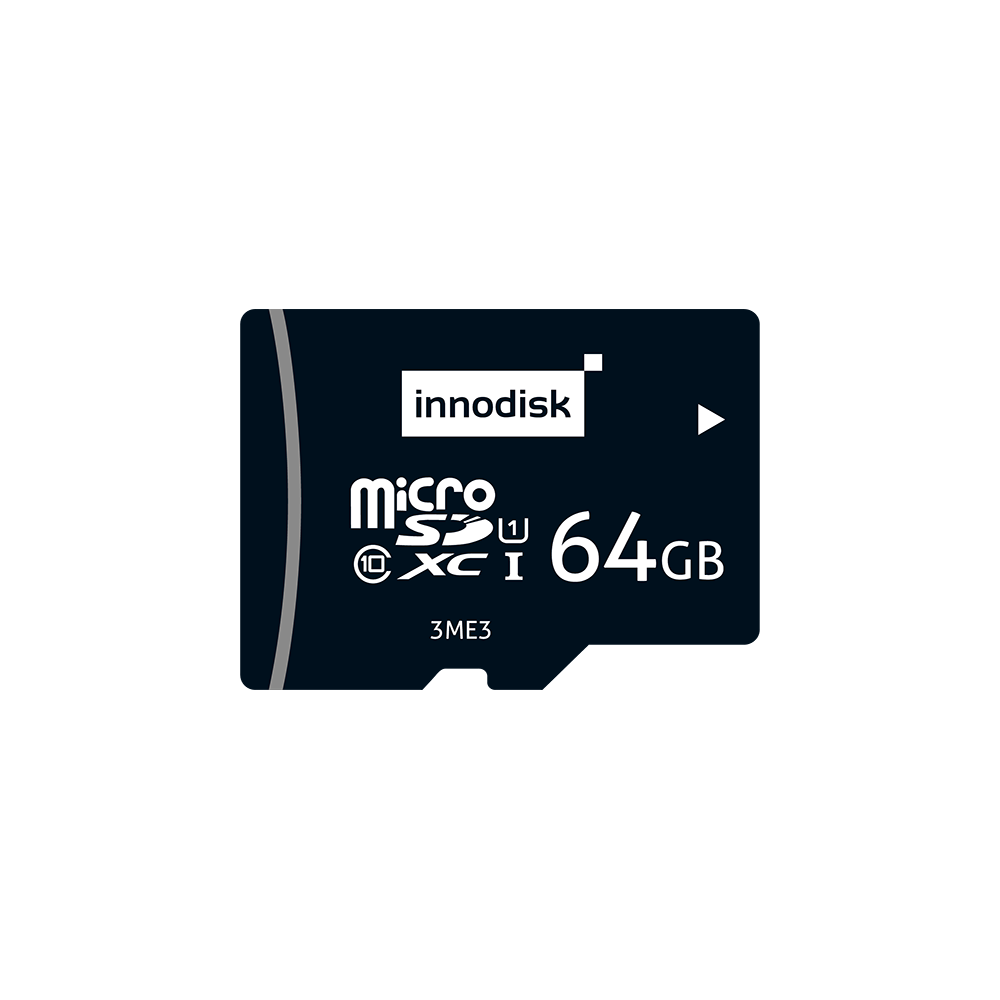

MicroSD Card 3ME3
Feature
- SD 3.0 interface
- Support Class 10 with UHS-I
- Adopt MLC NAND flash
- High performance
- Targeted for portable and stationary applications
- SMART function supported
BORN FOR SUPERIOR PERFORMANCE
Innodisk MicroSD 3ME3 series, supporting class 10 with UHS-I, are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance.
Innodisk MicroSD 3ME3 series provide wide range capacities from 8GB to 64GB with excellent quality MLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.
With its low power consumption and features above, Innodisk MicroSD 3ME3 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.
補
補
仕様
| Model Name | MicroSD 3ME3 |
|---|---|
| Flash Type | MLC |
| Interface | SD 3.0 |
| Form Factor | MicroSD Card |
| Capacity | 8GB ~ 64GB |
| Sequential R / W (MB/sec, max.) | 75 / 31 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 170 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 0.5W |
| Max. Channels | 1 |
| External DRAM Buffer | N |
| Features | S.M.A.R.T. |
| Dimension (W x L x H/mm) | 11.0 x 15.0 x 1.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Warranty | 2 Years |
