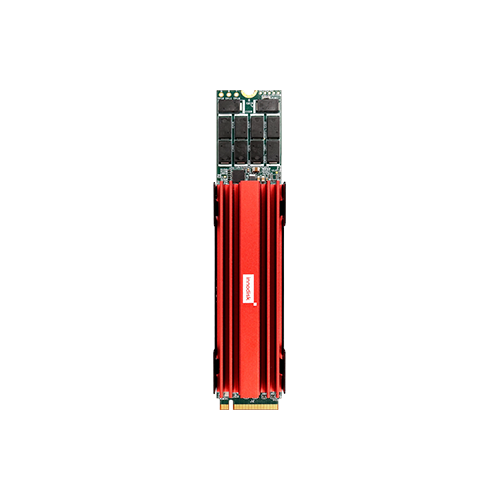

M.2 (P110) 4TS2-P

Features

• Up to 6,950 / 4,700MB/s read and write performance

• Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability

• PLP (iCell) technology for power loss protection

非必填

1非必填

EDGE AI FPGA Solution in Factory Automation

BORN FOR SUPERIOR PERFORMANCE

The Innodisk M.2 (P110) 4TS2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Its Die RAID protection enhances data integrity by reducing the occurrence of bad blocks. With ultra-fast speeds, hi

ENSURING STABILITY IN EXTREME ENVIRONMENTS

The M.2 (P110) 4TS2-P is specifically engineered for edge servers, supporting a wide temperature range from -40°C to 85°C. It incorporates a Dynamic Thermal Throttling mechanism that provides real-time SSD monitoring. When the temperature reaches a critical threshold, the system automatically issues commands to smoothly reduce read and write speeds, ensuring operational stability.

Dynamic Thermal Throttling >

iCell Technology – POWER LOSS PROTECTION

Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.

iCell >

AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT

Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.

AES & TCG Opal 2.0 >

TAILORED TO YOUR SPECIFIC NEEDS

HEAT SINK CUSTOMIZATION

Innodisk provides different types of heat sinks to meet your specific storage needs. (Black Copper Foil Heat Spreader / Red Aluminum Extrusions Heat Sink)

ご要望に応じてお問い合わせください

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

仕様

Model Name	M.2 (P110) 4TS2-P
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	M.2 22110 M Key
Capacity	400GB ~ 3.2TB
Sequential R / W (MB/sec, max.)	6,950 / 4,700
P/E Cycle	3,000
TBW (Max.)	5,312
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	10.1W
Max. Channels	8
External DRAM Buffer	Ｙ
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	S/T with heat-spreading copper layer : 22.0 x 110.0 x 3.3 W/T with heatsink : 25.0 x 110.0 x 14.45 Pure M.2 : 22.0 x 110.0 x 2.87
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

注文情報

Operating Temperature	Standrad Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
400GB	DSM21-400DP1KCBEFP	DSM21-400DP1KWBEFPH
800GB	DSM21-800DP1KCBEFP	DSM21-800DP1KWBEFPH
1.6TB	DSM21-1T6DP1KCBEFP	DSM21-1T6DP1KWBEFPH
3.2TB	DSM21-3T2DP1KCBEFP	DSM21-3T2DP1KWBEFPH
