INTEL ARROW ISLAND REFERENCE KIT

Be the early adopter to accelerate Edge AI! Innodisk and Intel have joined forces to drive Edge AI forward with a collaborative program, delivering integrated computing solutions ready to power your business.

  ARCHITECT INTELLIGENCE

Innodisk offers comprehensive INTELLIGENCE BUILDING BLOCKS, integrating essential elements that empower edge AI possibilities, tailored to each client's unique needs.

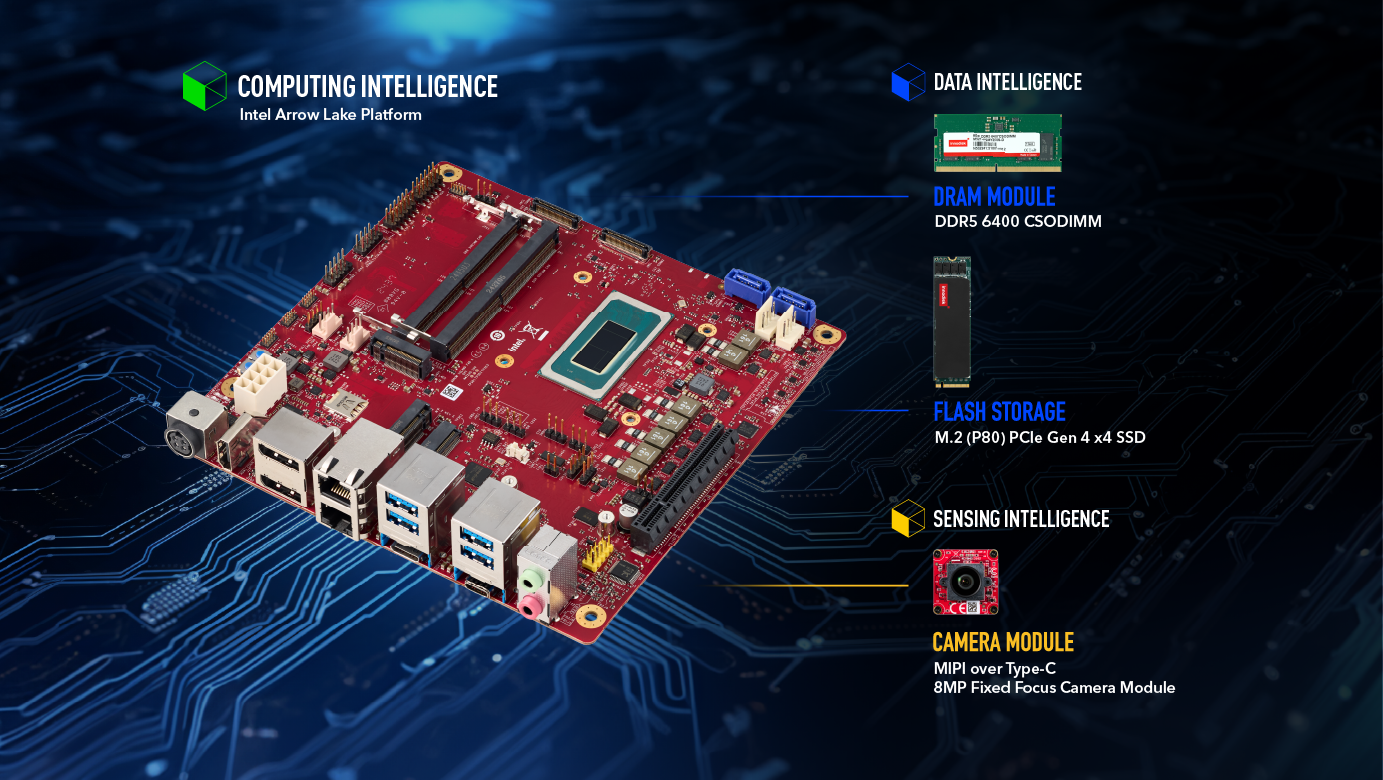

The Intel Arrow Island Reference Kit features the latest Intel Arrow Lake-U/H platform, seamlessly integrated with Innodisk's high-performance Flash, DRAM, and MIPI over Type-C Camera for accelerating your Edge AI applications.




  UNLOCK LATEST ADVANCEMENTS
IN EDGE AI FOR YOUR APPLICATIONS


Join the future of Edge AI with Intel's latest Arrow Lake-U/H platform and reliable solutions from Innodisk. This seamless integration unlocks AI's full potential, offering you the perfect solution to lead the way in the market.

  COMPUTING INTELLIGENCE

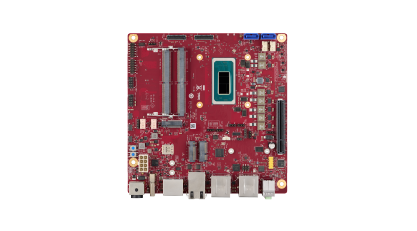

  INTEL ARROW LAKE PLATFORM

Intel Arrow Lake Platform	Features
	Intel Arrow Lake-U/H, capable of delivering up to 99 TOPS (H only) for Edge AI and machine learning workloads Support DDR5 6400 MT/s CSODIMM 2 x MIPI over Type-C port for direct camera extension Support 1 x Thunderbolt 4/ USB4, PD up to 15W (5V@3A) Support 3 displays, 1 x HDMI 2.1, 1 x DP++1.4, 1 x DP++2.0, up to 8K@60Hz Operation Temp. : 0°C ~ 60°C   Download Datasheet >

  DATA INTELLIGENCE

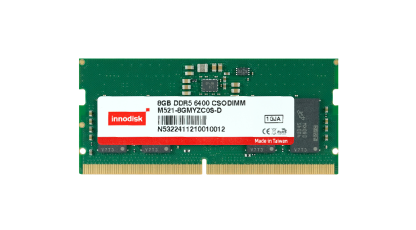

  DDR5 6400 CSODIMM

DDR5 6400 CSODIMM	Features
	Superior data transfer rate of 6400MT/s 8GB to 64GB density Adds the Client Clock Driver (CKD) and Transient Voltage Suppressors (TVS) diode to ensure the integrity and reliability Anti-sulfuration protection against harsh environments 30μ” gold finger Operation Temp. : 0°C ~ 95°C   Learn More >

  DATA INTELLIGENCE

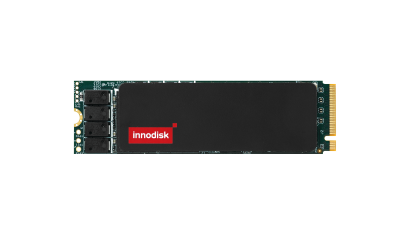

  M.2 (P80) 4TG2-P

M.2 (P80) 4TG2-P	Features
	PCIe Gen 4 x4, NVMe 1.4 Wide range of capacity: 256GB~4TB Up to 6,950 / 4,700MB/s read and write performance 256-bit AES hardware-based encryption Optional PLP (iCell) technology for power loss protection Operation Temp. : -40°C ~ 85°C   Learn More >

  SENSING INTELLIGENCE
  INTEL ARROW LAKE PLATFORM

Intel Arrow Lake Platform	Features

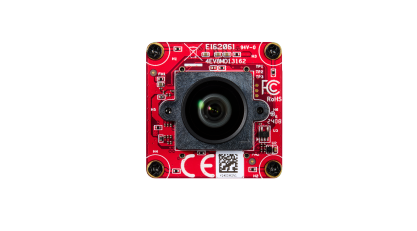

	MIPI over Type-C Interface, 8MP @30fps (Max Resolution) Support HDR, ISP inside Dynamic Range: 120dB Lens FOV ( D / H / V ) : 107°/100°/67° Complies with CE / FCC Class A Operation Temp. : -30°C ~ 70°C   Learn More >

  ACT NOW
  ARROW YOUR BUSINESS FORWARD WITH CUSTOM AI KITS


This program offers robust, fully compatible, high-performance solution kits tailored to your unique needs.


Here’s what we provide:

Contact us today to arrow your business forward.
