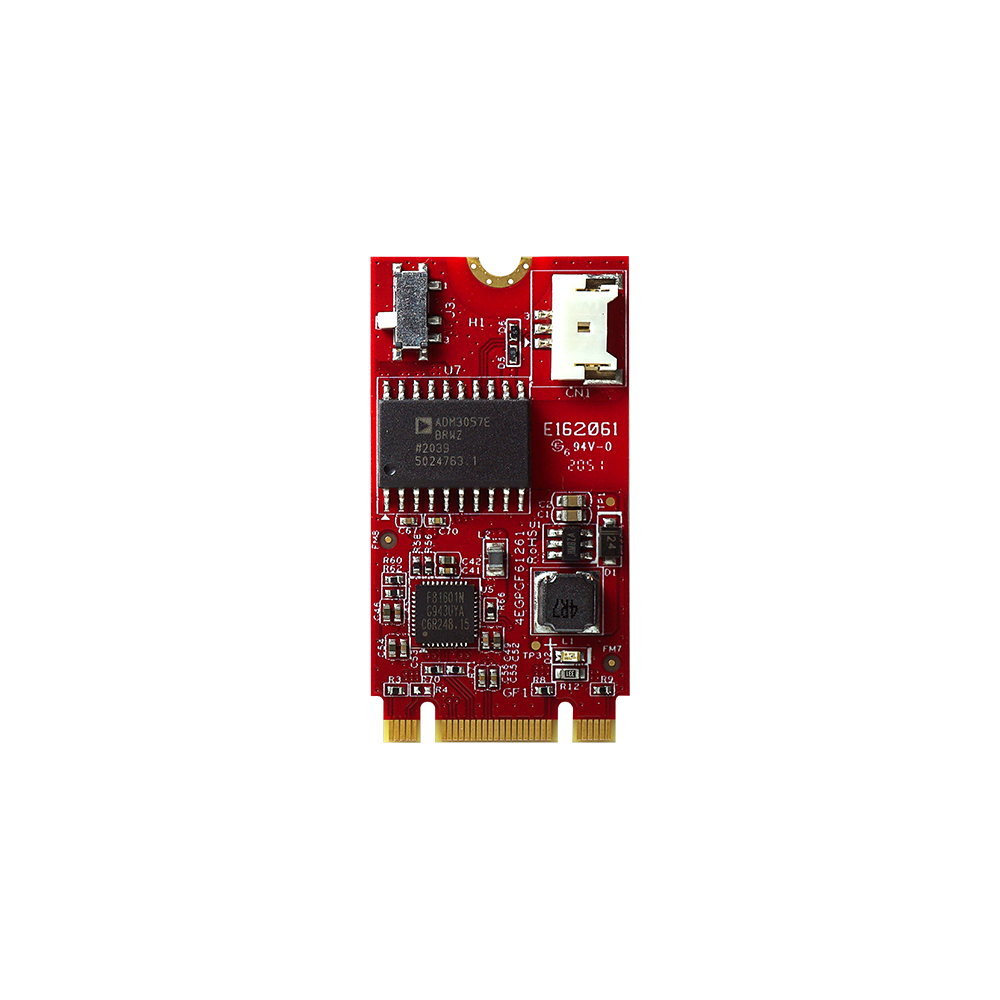

EGPC-B1S1

Features

Compliant with PCI Express 1.1
Meet the Requirements of the ISO 11898-1
CAN bus 2.0B backward compatible with 2.0A
Support baud rate 10/20/50/100/250/500/800/1000K
Support CAN message acceptance filter
Support Linux SocketCAN
Support SAE J1939/CANopen high layer protocol (Optional)
Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Termination resistor enabled/disabled by switch
30μ” golden finger, 3-year warranty
Industrial Temperature (-40°C to +85°C) support
Industrial design, manufactured in Innodisk Taiwan

BORN FOR SUPERIOR PERFORMANCE

補

TAILORED TO YOUR SPECIFIC NEEDS

VERSATILE FORM FACTOR OPTIONS

Offering a wide range of form factors to meet the specific needs of your motherboards.

VARIOUS PLATFORMS AND OS DRIVERS SUPPORT

Providing customized software services that allow the EGPC-B201 to support different platforms or OS drivers.

聯絡我們，了解您的需求

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

METRO PASSENGER GATEWAY

Ensures safe and reliable transportation operations with advanced communication protocols and high voltage isolation.

SMART AGRICULTURE

Supports precision farming with real-time data monitoring, boosting efficiency and sustainability.

WOODWORKING MACHINE

Enhances operational accuracy and efficiency through precise control and real-time monitoring.

MINING EQUIPMENT

Delivers real-time monitoring, enhanced safety measures, and fleet coordination for heavy-duty mining equipment, ensuring reliable and efficient operation in demanding environments.

規格表

Model Name	EGPC-B1S1
Module Type	M.2 to Single Isolated CAN Bus 2.0B / J1939 / CANopen Module
Form Factor	M.2 2242 B+M Key
Function	CAN Bus
Input I/F	PCI Express 1.1 x1
Output I/F	CAN Bus 2.0B
Output Port	1
Output Connector	DB-9
Max. Power Consumption	2.5W (3.3V x 742mA)
Dimension (W x L x H/mm)	22 x 42 x 4.8
Temperature	Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	50G@0.5ms
OS Support	Windows : 7 (32 / 64bit), 8 / 8.1 (32 / 64bit), 10 (32 / 64bit), and above version Linux : SocketCAN driver from Kernel 2.6.38 and above (32 / 64bit)
Warranty	3 Years
Notes	--
