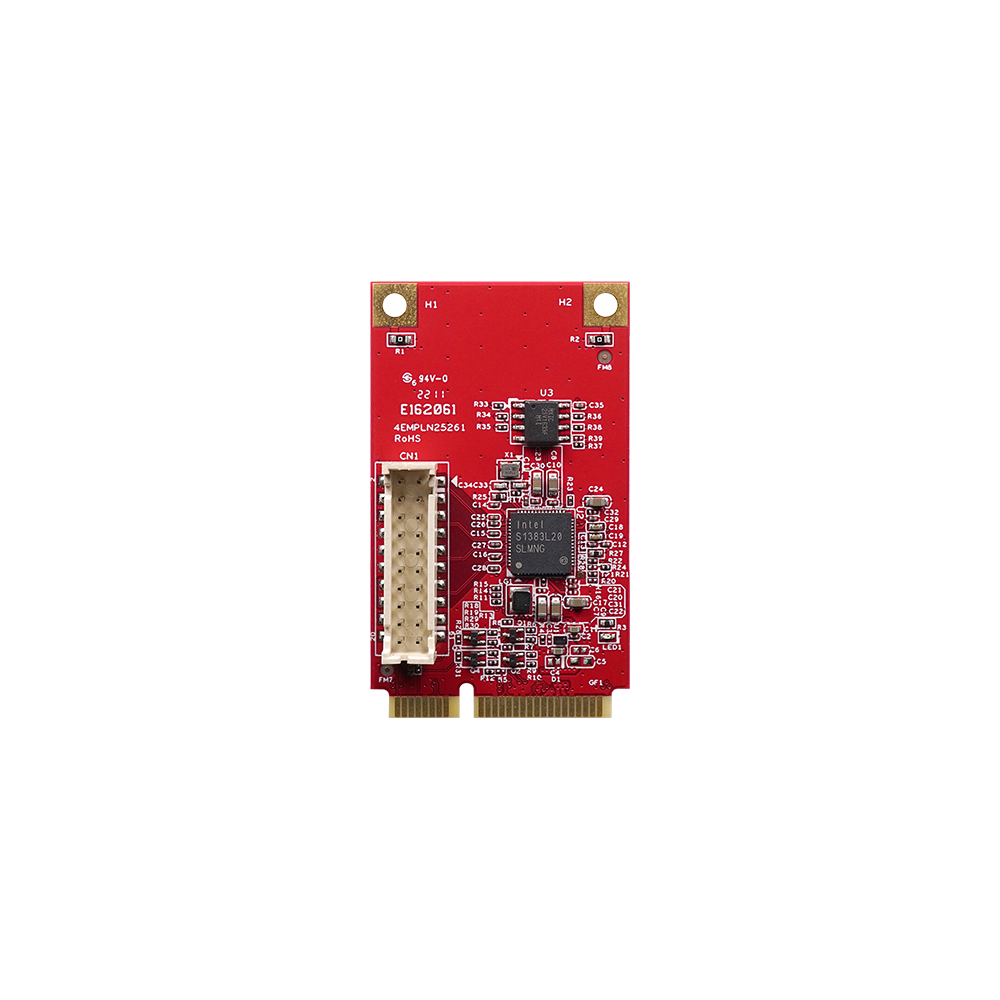

EMPL-21S1

Features

Single isolated 2.5GbE LAN port
Complies with EN61000-4-5 2kV Surge protection
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Flexible daughter board with cable to fit into different system
Optional terminal mounting hole or bracket for daughter board
Optional Industrial Temperature (-40°C to +85°C) support
30μ” golden finger, 3-year warranty
Industrial design, manufactured in innodisk Taiwan

BORN FOR SUPERIOR PERFORMANCE

In today's data-driven world, reliable and high-performance network connectivity is essential for automation, medical, gaming, surveillance, and IPC systems. The Innodisk mPCIe to Dual Isolated 2.5GbE LAN Module delivers robust networking capabilities to these applications, ensuring seamless data transmission and enhanced system performance.

RELIABLE PERFORMANCE IN HARSH ENVIRONMENTS

To meet the demands of harsh working conditions, the Innodisk EMPL-22S2 is certified with 2.5kV surge and HiPOT protection standards, ESD testing, and supports a wide operating temperature range of -40°C to 85°C. These features ensure the product safeguards devices and maintains stable performance across various applications.

Surge Protection : EN61000-4-5 2.5kV
HiPOT Protection : IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV
ESD Testing : EN61000-4-2 : Air-15kV, Contact-8kV
Wide Temperature : -40°C ~ 85°C

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

INDUSTRIAL / EMBEDDED

Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.

AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

SURVEILLANCE & SAFETY

Our solutions deliver advanced analytics and instant response for modern surveillance needs.

HEALTHCARE

We integrate AI into healthcare with advanced solutions, meeting strict medical demands.

規格表

Model Name	EMPL-21S1
Module Type	mPCIe to Single Isolated 2.5GbE LAN Module
Form Factor	mPCIe
Function	LAN
Input I/F	PCI Express 2.1 x1
Output I/F	2.5GbE LAN
Output Port	1
Output Connector	RJ45
Max. Power Consumption	1.86W (3.3V, 564.7mA)
Dimension (W x L x H/mm)	Main Board: 30 x 50.9 x 9.2 Daughter Board: 59.5 x 30 x 17.32
Temperature	Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	50G@0.5ms
OS Support	Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version
Warranty	3 Years
Notes	● Please download driver from Intel official website. ● Linux Kernel rebuild is needed (modify igc driver) if version < 5.16.18. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro.
