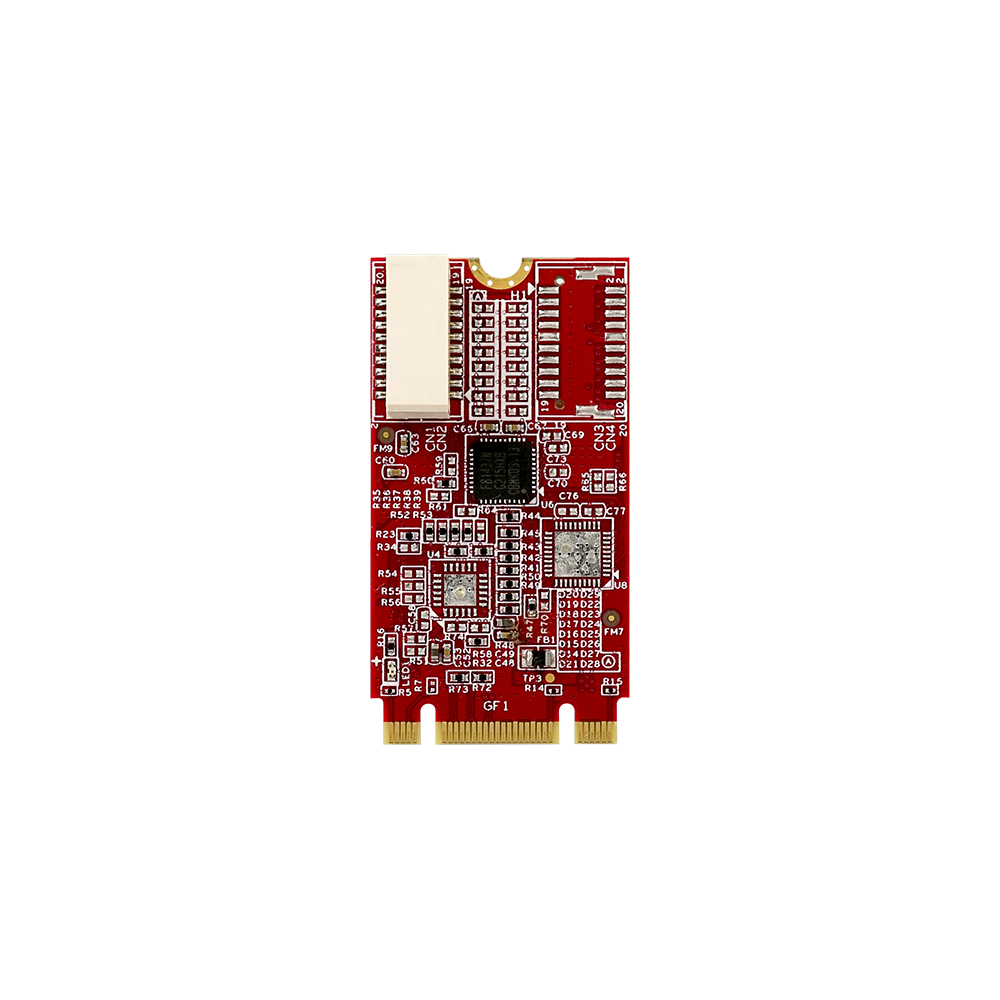

EGP2-X203

BORN FOR SUPERIOR PERFORMANCE

Catering to the needs of legacy and industrial devices, the Innodisk M.2 2242 to Four RS-232 Module provides four RS-232 ports, enabling seamless connectivity with a vast array of industrial equipment. This expansion capability empowers users to connect multiple devices simultaneously, streamlining data transfer and communication in industrial environments.

規格表

Model Name	EGP2-X203
Module Type	M.2 2242 to Dual RS-232 Module
Form Factor	M.2 2242 B+M Key
Function	Serial
Input I/F	PCI Express 1.1 x1
Output I/F	RS-232
Output Port	2
Output Connector	DB-9
Max. Power Consumption	1.55W (3.3V x 472mA)
Dimension (W x L x H/mm)	Vertical : 22 x 42 x 6.83 Horizontal : 22 x 42 x 7.93
Temperature	Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	50G@0.5ms
OS Support	Windows : 7 (32 / 64bit), 10 (32 / 64bit), and above version Linux : Kernel 2.6.38 and above
Warranty	3 Years
Notes	--

產品料號

P/N	Description
EGP2-X203-W1	M.2 2242 to Four RS-232 Module, Vertical Connector / Wide Temperature
EGP2-X203-W2	M.2 2242 to Four RS-232 Module, Horizontal Connector / Wide Temperature
