mPCIe to Single GbE LAN Module

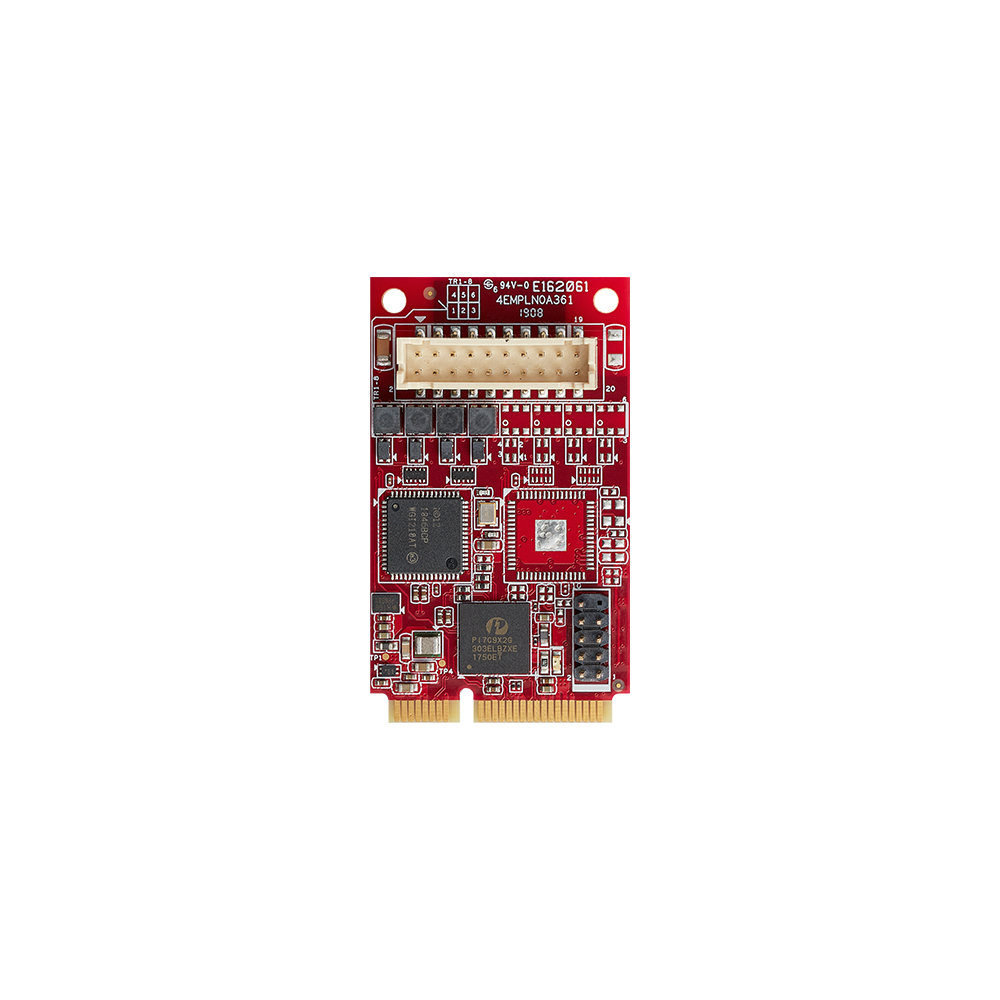

EMPL-G103
Features
- Intel i210 chip. Single GbE LAN ports
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Transformer on PCB for flexible cable design
External LED indicator pin for speed 10/100/1000
Optional Industrial Temperature (-40°C to +85°C) support
30μ” golden finger, 3-year warranty
Industrial design, manufactured in innodisk Taiwan
BORN FOR SUPERIOR PERFORMANCE
補
規格表
| Model Name | EMPL-G103 |
|---|---|
| Module Type | mPCIe to Single GbE LAN Module |
| Form Factor | mPCIe |
| Function | LAN |
| Input I/F | PCI Express 2.1 x1 |
| Output I/F | GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 1.34W (3.3V, 405mA) |
| Dimension (W x L x H/mm) | 29.85 x 50.8 x 9.35 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : XP (32bit), 7 (32 / 64bit), 8 / 8.1 (32 / 64 bit), 10 (32 / 64bit), and above version Linux : Kernel 2.4 series, 2.6.x, 3.x, and above version |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Not recommend used in VMware ESXi due to High Latency. |
產品料號
P/N | Description |
EMPL-G103-C1 | mPCIe to single GbE LAN Module ((Standard Temp.) |
EMPL-G103-W1 | mPCIe to single GbE LAN Module (Wide Temp.) |
